What Is a Junction Box?
A Junction Box is an enclosure that protects and contains electrical wire connections. It provides a defined space for splices, branch circuits, and fixture wiring. The box helps shield connections from physical damage and keeps conductors organized. Junction boxes may be metal or nonmetallic, depending on the wiring method and installation conditions.
Quick Facts About Junction Box
Category
Electrical enclosure
Used for
Protecting wire splices and branches
Common confusion
Confused with an electrical panel
Also called
Electrical Box, Electrical junction box
Often discussed with
Light Fixture Installation
Key Takeaways About Junction Box
- A junction box encloses wire connections within a defined space.
- The enclosure supports organized wiring during fixture installation.
- A junction box is not the same as a breaker panel.
How Junction Box Works

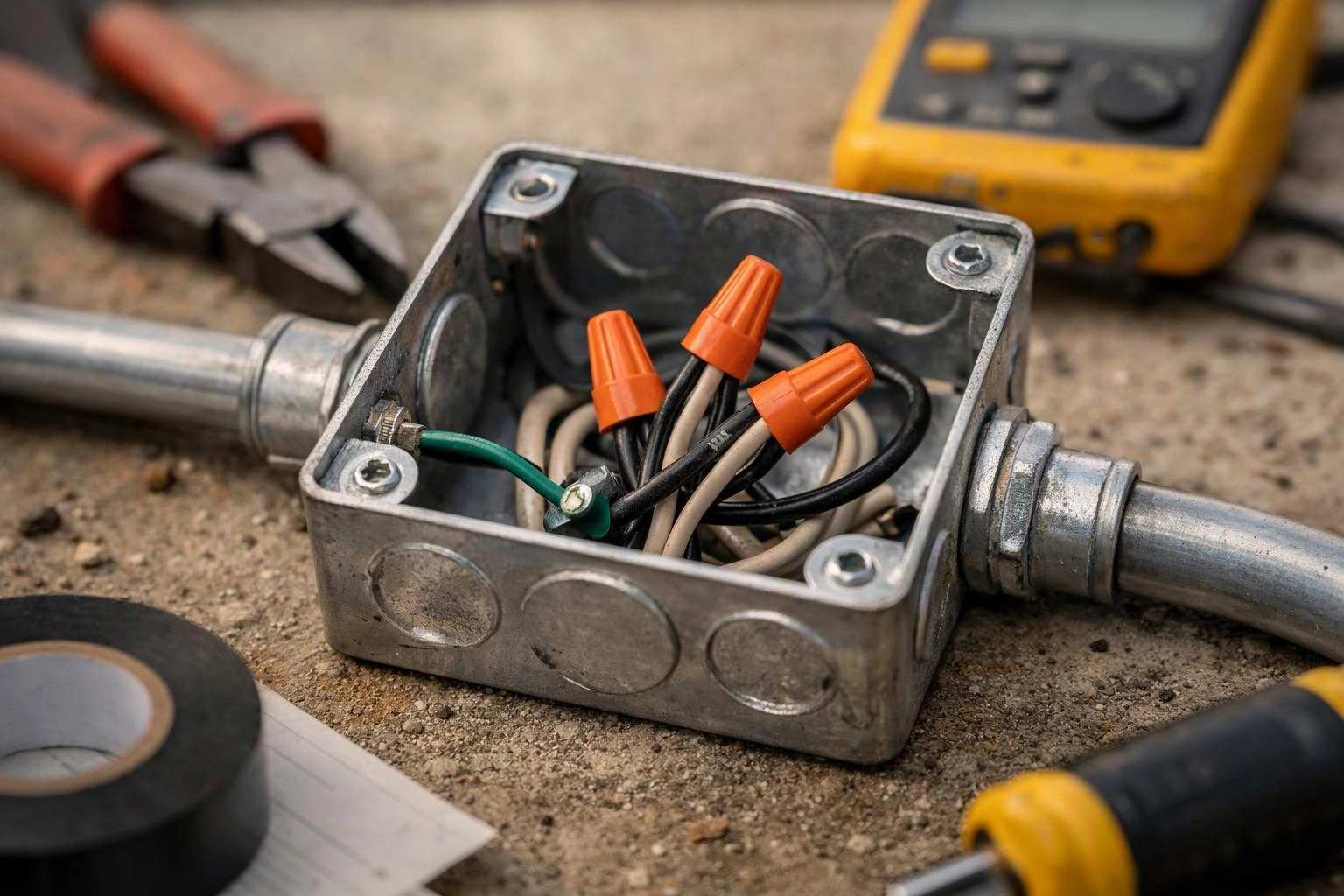

A Junction Box holds the point where electrical conductors connect, continue, or branch into separate wiring paths. Conductors enter through openings in the enclosure. Connectors secure the wires and keep exposed connection points inside the box. A cover closes the enclosure after the wiring work is complete.
Related glossary terms: Wire Nut, Conduit, Electrical Neutral.
During light fixture installation, the box may connect the supply wiring to the fixture conductors. The box also gives the installer a stable point for fixture support when the box is designed for that purpose. Wire Nut connectors or other approved connectors join matching conductors inside the enclosure. The box type must suit the wiring method, location, and fixture arrangement.
From the Center Electric Service team
When we install a light fixture, we inspect the junction box for secure mounting, suitable wiring connections, and signs of heat or physical damage. We also check that the fixture support matches the box and that the conductors remain contained after installation.
Junction Box in Practice: A Real-World Example
A ceiling light replacement may require a junction box that connects the ceiling supply wires to the new fixture wires. The installer secures the fixture to the box and closes the connections under the cover.
