What Is Voltage Drop?
Voltage Drop is the reduction in electrical pressure that occurs as current travels through a conductor, connection, or device. The reduction becomes more noticeable when a circuit carries a heavier load or has greater resistance. Excessive voltage drop can make equipment perform poorly, run hotter, or fail to receive the power it needs.
Quick Facts About Voltage Drop
Category
Electrical circuit condition
Used for
Troubleshooting weak equipment performance
Common confusion
Mistaken for low utility voltage or a tripped breaker
Also called
Voltage loss
Often discussed with
Electrical Troubleshooting
Key Takeaways About Voltage Drop
- Voltage drop occurs along a circuit, not only at the electrical panel.
- Loose connections and long conductors can increase circuit resistance.
- Voltage drop is not the same as a tripped breaker.
How Voltage Drop Works
Voltage Drop describes the electrical pressure lost as current moves through a circuit. Every conductor and connection adds some resistance, so the load may receive less voltage than the source provides. A longer circuit, damaged conductor, loose terminal, or heavily loaded branch can increase that loss.
Related glossary terms: Electrical Load, Line Voltage, Wire Gauge.

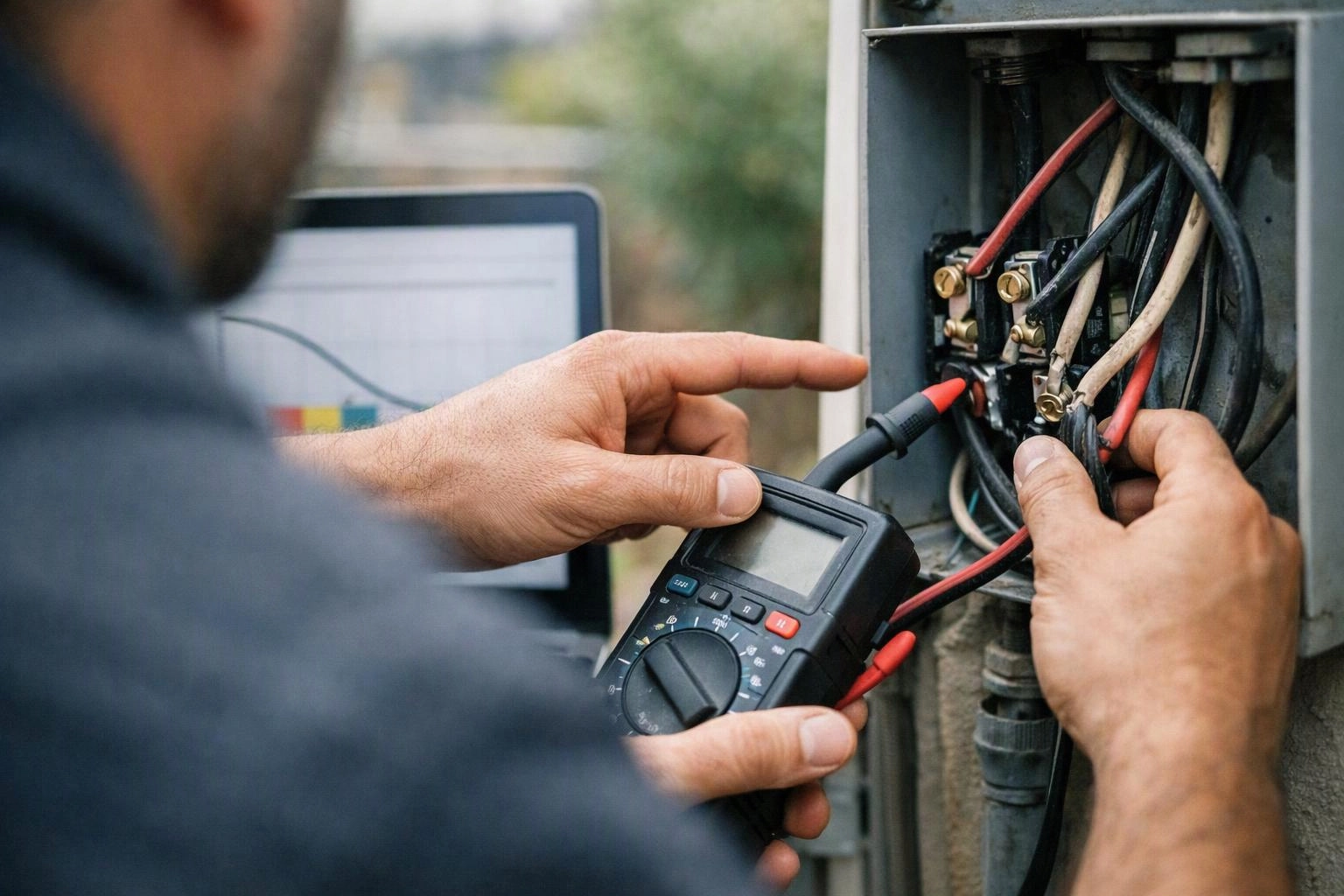

An electrician checks voltage at the source and at the operating equipment, then compares the readings while the circuit carries its normal load. A noticeable difference helps identify whether the issue lies in the wiring, a connection, or the equipment itself. A multimeter can show the readings, while a clamp meter can show current flow that helps explain the condition.
From the Center Electric Service team
When we investigate voltage drop, we measure the circuit at the source and at the load while the equipment operates. We inspect accessible connections, conductor condition, and load behavior so we can separate wiring problems from equipment faults.
Voltage Drop in Practice: A Real-World Example
A Riverside home may have a branch circuit where a motor starts normally but loses power during operation. We check voltage at the panel and at the motor while it runs, then inspect the circuit for resistance caused by its wiring or connections.
