What Is Wire Gauge?
Wire Gauge is a standardized system for describing a conductor’s thickness and current-carrying capacity. The gauge designation helps electricians select wire for a circuit’s load, installation method, and connection points. A suitable gauge supports reliable operation, while an unsuitable size can contribute to overheating, voltage loss, or code correction work.
Quick Facts About Wire Gauge
Category
Electrical measurement system
Used for
Matching conductors to circuit demands
Common confusion
Gauge is not wire length

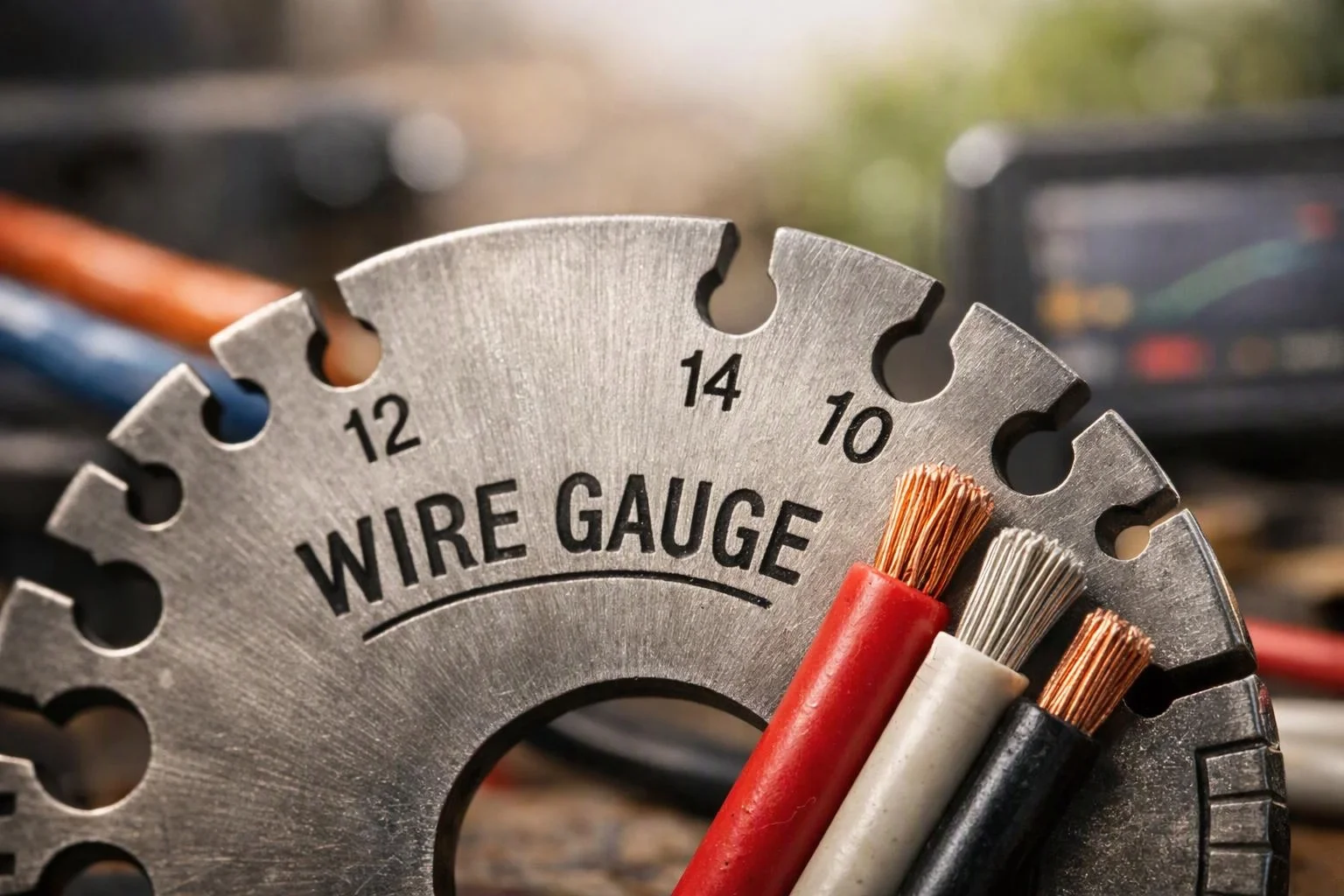

Typical tool
Wire gauge tool or marked insulation
Also called
Wire Size, American Wire Gauge
Often discussed with
Electrical Code Correction
Key Takeaways About Wire Gauge
- Gauge describes conductor thickness, not insulation color.
- Circuit load and installation conditions guide wire selection.
- Gauge is commonly confused with wire length.
How Wire Gauge Works
Wire Gauge identifies the size of a conductor by its diameter and resistance characteristics. A thicker conductor generally carries more electrical current with less resistance. Gauge markings may appear on the insulation, packaging, or a wire-sizing reference.
Related glossary terms: Electrical Load, Voltage Drop, Overcurrent.
Electricians compare the gauge with the circuit load, conductor material, run length, and installation conditions. A circuit serving a larger load may need a larger conductor to control heat and voltage loss. The selected wire also needs compatible terminals, breakers, outlets, and junction connections.
Practical use in code correction
During an electrical code correction, wire gauge helps reveal whether an existing conductor suits the breaker and connected equipment. A mismatch may require tracing the circuit, checking terminations, and correcting related components. Wire gauge alone does not identify every wiring problem, since insulation condition and connection quality also affect the assessment.
From the Center Electric Service team
When we inspect wiring for an electrical code correction, we identify the conductor gauge and compare it with the circuit equipment and protective device. We also check terminations, insulation, routing, and signs of heat. Our team treats the visible gauge marking as one part of the complete circuit assessment.
Wire Gauge in Practice: A Real-World Example
A Riverside home has a breaker serving equipment that draws more current than the connected conductor appears suited to carry. For an Electrical Code Correction, we verify the wire gauge, inspect the breaker and terminations, then identify the correction needed for the complete circuit.
